CSS Tip

Recreating the <filedset> component and its <legend>

Using a minimal HTML code and modern CSS to recreate the <fieldset> component. A responsive implementation easy to control using CSS variables. It's also direction-aware with real transparency!

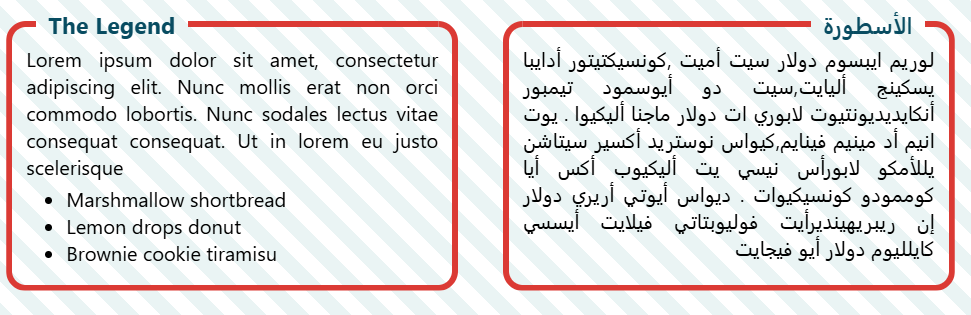

CSS-only filedset component

<div class="fieldset">
  <h3>The Legend</h3>
  <!-- place your content here  -->
</div>
.fieldset {
  --r: 20px; /* radius of the box */
  --p: 1em;  /* padding of the box */
  --b: 6px;  /* border thickness */
  --g: 12px; /* gap between the legend and border */
  --o: 10px; /* to offset the legend from the side */
  --c: #db3a34;

  padding: var(--p);
  position: relative;
  z-index: 0;
  display: flow-root; /* to avoid margin collapsing */
}
.fieldset h3 {
  margin:
    calc(var(--b)/2 - .5lh - var(--p))
    calc(var(--r) - var(--p))
    calc(var(--p) - .5lh - var(--b)/2);
  display: flex;
  gap: var(--g);
}
.fieldset h3:before,
.fieldset h3:after {
  content: "";
  border-top: var(--b) solid var(--c);
  width: var(--o);
  margin-top: calc(.5lh - var(--b)/2)
}
.fieldset h3:after {
  flex: 1;
}
.fieldset:before {
  content:"";
  position: absolute;
  z-index: -1;
  inset: 0;
  border-radius: var(--r);
  border: var(--b) solid var(--c);
  clip-path: polygon(0 0,var(--r) 0,var(--r) 50%,calc(100% - var(--r)) 50%, calc(100% - var(--r)) 0,100% 0,100% 100%,0 100%);
}

See the Pen Recreating <fieldset> (and <legend>) using CSS by Temani Afif (@t_afif) on CodePen.
